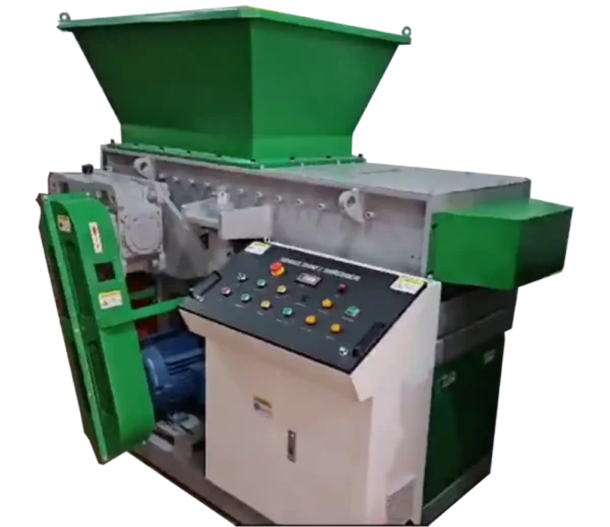

Plastic Lumps Grinder Machine
Shred Maxx is a highly reliable plastic lumps grinding machine manufacturer, and provides high-quality and efficient grinding equipment for the processing of hard plastic lumps, purgings and production waste. Machines designed with high quality components and durable cutting blades and with powerful motors, ensuring consistent performance, faster grinding and less maintenance.
Shred Maxx Plastic Lumps Grinder Machines are developed for plastic recycling, injection molding, extrusion as well as other industrial applications to guarantee optimum material recovery, waste reduction and overall production efficiency. To cater to various processing needs, we offer tailored machine solutions too.
Technical Specifications of Plastic Lumps Grinder Machine
| Parameter | Specification |
|---|---|
| Machine Type | Plastic Lumps Grinder Machine |
| Grinding Capacity | 100 – 2000 kg/hr (Depending on Model & Material) |
| Motor Power | 10 HP – 100 HP |
| Blade Material | High Carbon High Chrome (HCHC) / D2 Steel |
| Number of Rotary Blades | 3 – 9 (Model Dependent) |
| Number of Fixed Blades | 2 – 4 |
| Rotor Speed | 450 – 650 RPM |
| Screen Size | 8 mm – 30 mm (Customizable) |
| Cutting Chamber Material | Heavy-Duty Mild Steel / Fabricated Steel |
| Feeding Type | Manual / Conveyor Feeding |
| Drive Type | Belt Drive |
| Voltage | 415V, 3 Phase, 50 Hz |
| Machine Body | Heavy-Duty Welded Steel Construction |
Features of Plastic Lumps Grinder Machine
Heavy-duty construction for long-lasting industrial performance.
High-strength alloy steel blades for efficient and precise grinding.
Powerful motor ensures fast and consistent material processing.
Suitable for grinding hard plastic lumps, purgings, and plastic scrap.
Uniform output particle size with replaceable screen options.
Low vibration and low noise operation.
Energy-efficient design for reduced power consumption.
Easy blade adjustment and maintenance.
How the Plastic Lumps Grinder Machine Operates?
The Plastic Lumps Grinder Machine operates through a systematic grinding process that efficiently converts large plastic lumps into reusable granules. Below are the key stages of its operation:
1. Plastic Lump Feeding
Large plastic lumps, purgings, and rejected plastic components are loaded into the feed hopper, ensuring a steady flow of material into the grinding chamber.
2. Blade Cutting Mechanism
High-speed rotating blades work against stationary blades to cut, crush, and shred the plastic lumps into smaller pieces with precision and efficiency.
3. Size Reduction Through Screening
The partially ground material passes through a perforated screen. Oversized particles remain inside the grinding chamber for additional cutting until the required granule size is achieved.
4. Granule Discharge
After reaching the desired size, the processed plastic granules are discharged through the outlet and collected for reuse in manufacturing or recycling applications.
5. Continuous and Efficient Performance
The machine is designed for continuous industrial operation, delivering high productivity, low power consumption, and consistent grinding performance while reducing plastic waste and improving material recovery.
Why Choose Shred Maxx for Plastic Lumps Grinder Machine?
Shred Maxx, a trusted Plastic Lumps Grinder Machine Manufacturer, is renowned for its high efficiency, energy-saving, and durable grinding machines. The high-quality components used in our machines are combined with high precision blades to achieve efficient size reduction, low maintenance and long service life. Offering flexible machine configurations, competitive pricing, and after-sales support, Shred Maxx ensures reliable solutions that boost productivity and maximize material recovery for plastic recycling industries.
